Polyester railing
GEI resin railings protect users, while offering high resistance to chemicals and high temperature.

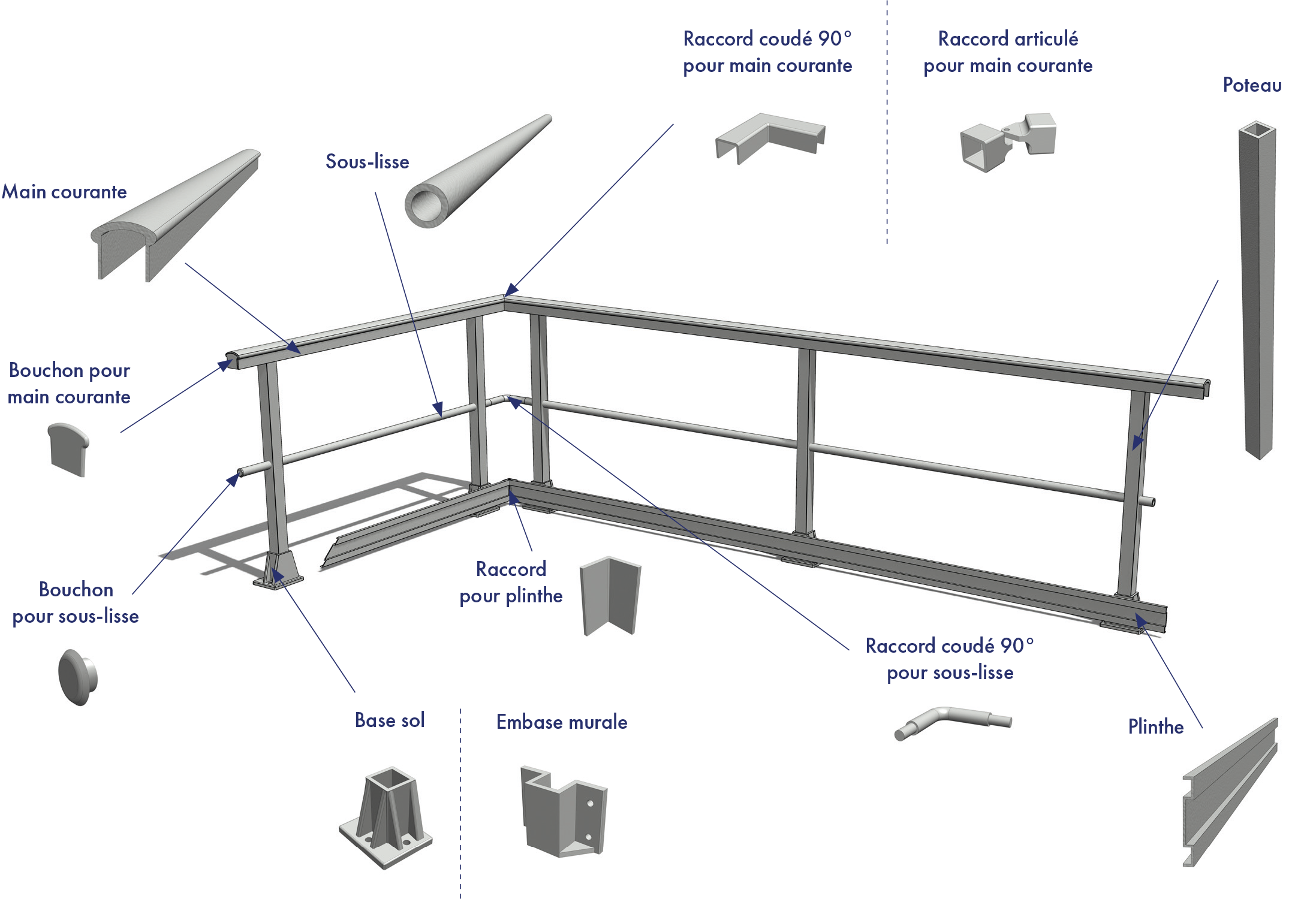

In order to keep users safe, GEI offers railing profiles made in resin. Such railings are mainly used to protect industrial walkways and are fitted with a hand rail, one or more intermediate rails and vertical posts.
Colour of assembly: Grey RAL 7035
POST
Length: 6000 mm
Dimensions (W x H x thickness):
50 x 50 x 7.5 mm
HAND RAIL
L 6000 x W 58 x
H 62 mm
UNDER RAIL
L 6000 mm
Inner Ø 22 mm
Outer Ø 32 mm
BASE PANEL
L 6000 x W 100 mm
90°BEND FITTING
FOR HAND RAIL
L 150 x 150 mm
W 49 x H 40 mm
90°BEND FITTING
FOR UNDER RAIL
L 105 x 105 mm
Inner Ø 21.7 -
Outer Ø 30 mm
ARTICULATED FITTING
FOR HAND RAIL
L 50 x W 50 x H 143 mm
FITTING
FOR BASE PANEL
L 100 x W 50 x H 50–
thickness 6 mm
FLOOR BASE
Fastened to the floor
L 153 x W 126 x
H 133 mm
WALL MOUNT
Fastened to the wall
L 170 x W 60 x
H 120 mm
PLUG FOR
HAND RAIL
L 6 x W 60 x H 63 mm
PLUG FOR
UNDER RAIL
L 14 mm
Inner Ø 22 mm
Outer Ø 35 mm
